Specifications

---

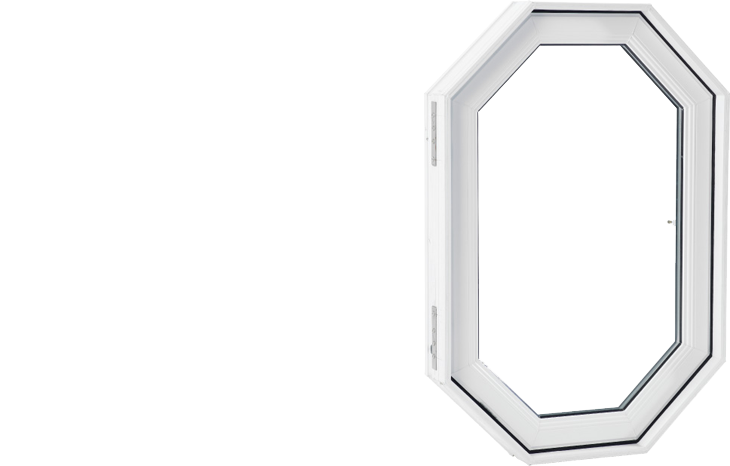

Customize your space to your heart’s content by blending your home’s unique architecture with the perfect shape, be it an arch, semi-circle, ellipse, octagon, trapezoid, triangle, etc.

These windows can be built individually or in combination with other window types including casement, awning, hung and ancestral windows. Installed above door frames, transoms are also available.

• 4 9⁄16 inches deep PVC frame.
• Sash corners and frame heat welded with high quality equipment. Contemporary or stylized sash available.

• Our multi-chamber window design is one of the most energy efficient on the market, increasing rigidity and providing superior insulation and sound proofing.
• Modular design windows for greater strength and stability that make the installation easier.

• Our standard: double glazing at 7⁄8 inch (22 mm) thick with Low-E window film, argon gas and a high performance warm edge spacer.
• Optional: triple glazing at 1 3⁄8 inches (35 mm) thick with the same characteristics as previously mentioned for the double glazing.



• Triple weather stripping system providing exceptional protection against air and water infiltration.
• Steel reinforcements installed in frames and shutters allow for the largest possible window dimensions.







A FEW EXAMPLES

For rigidity and safety reasons, all shapes and/or dimensions must first be approved by our technical department.

---
